Case Studies
Success Cases: Practical Applications of Our PCB Solutions
Why Choose Us?
No other PCB manufacturer can match our track record. We provide more than just custom PCB manufacturing and assembly services. Leveraging our professional PCB technical framework, we help clients develop better products, shorten production cycles, and significantly boost sales. Our clients highly recognize our services.
Our electronic prototype development services optimize product design, balancing performance, reliability and manufacturability to help your products launch to the market quickly and smoothly. The enterprises we have supported have successfully secured venture capital, signed million-level contracts, and expanded finished product sales globally.
Our team brings together experienced engineers with a cumulative cross-industry experience of over 50 years. From basic circuit boards to complex multi-layer, multi-component systems, our professional PCB designers can tailor electronic board design solutions that meet your specific needs.
Lithium Battery Charging Management Board

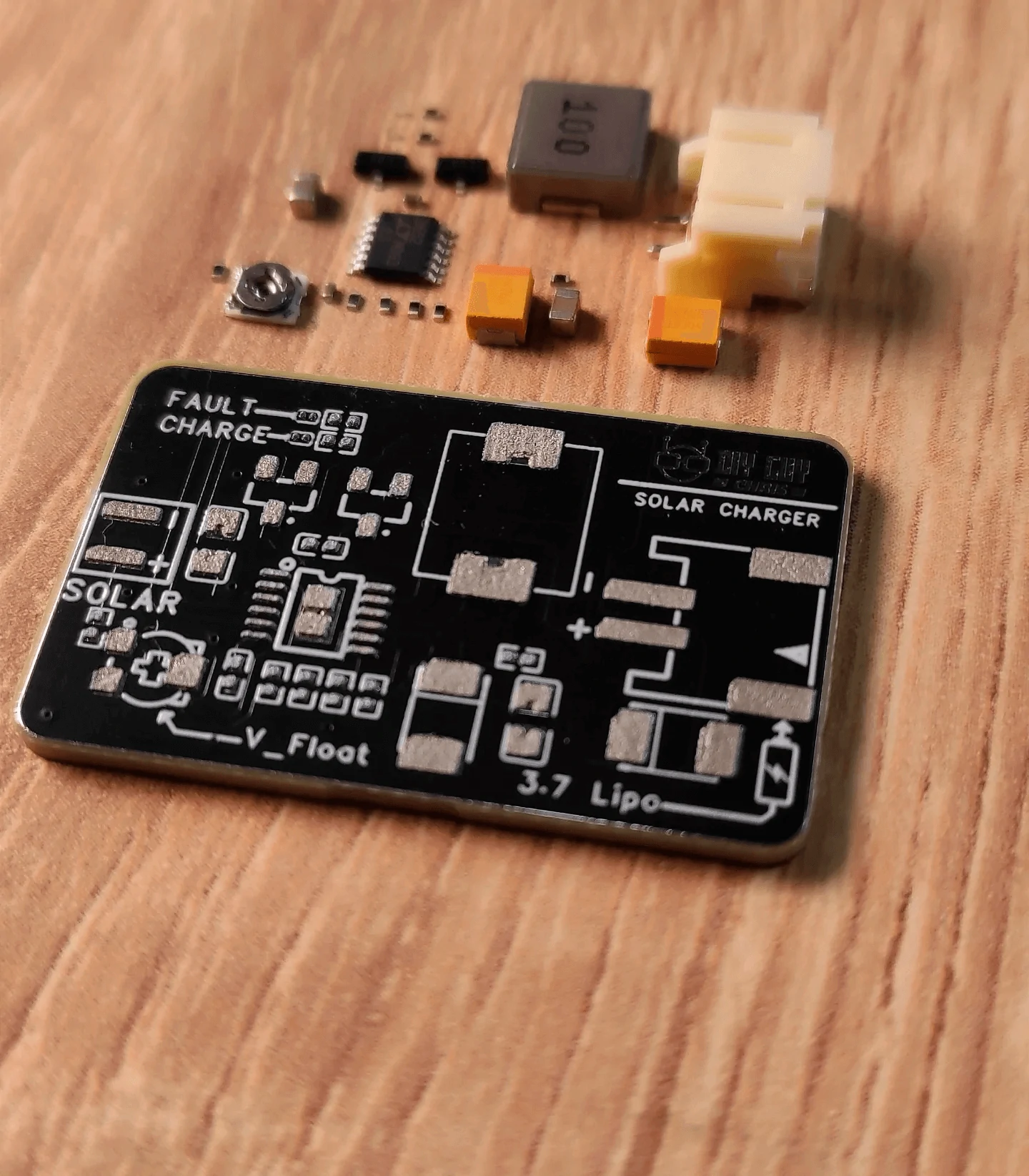

Compact Solar Lithium Battery Charging Management Board
A power solution specially designed for portable low-power devices. It converts the unstable voltage input from solar panels into stable charging current for safe charging of 3.7V lithium polymer (LiPo) batteries. Adopting a highly integrated SMD component design, it integrates charging management ICs, power inductors, protection circuits and other modules on a compact PCB, achieving extremely high space utilization.
Vacuum Tubes
Electronic Components
Featuring an all-discrete component + vacuum tube design, the 4 miniature vacuum tubes on the board are the core, paired with carbon film resistors and metallized polyester capacitors. Based on a phenolic resin board, components are fixed through through-hole soldering.
Snowflake Lights

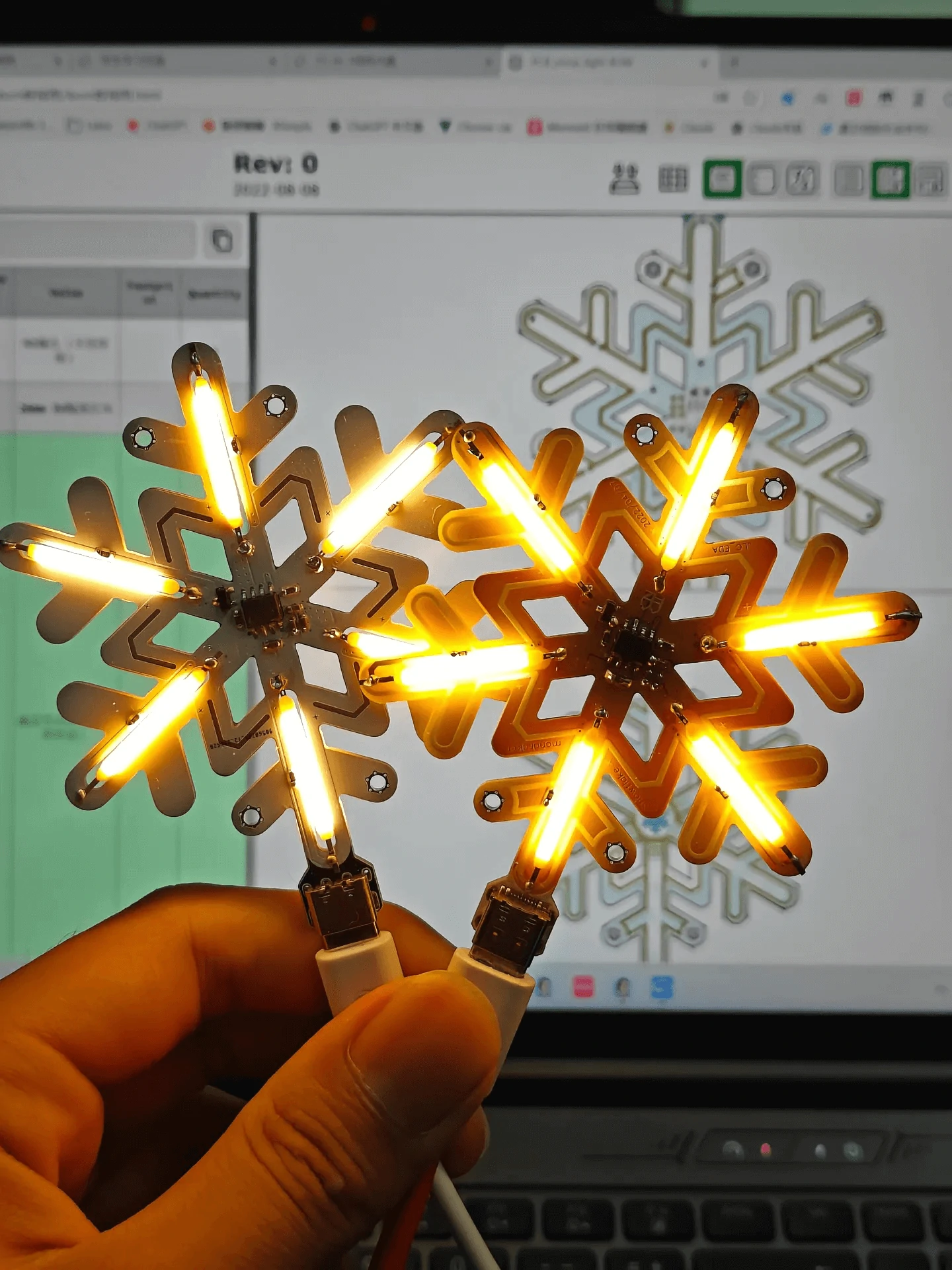

PCB Snowflake Ambient Lights
Modeled after snowflakes, it uses a PCB circuit board as the lamp body frame, with ceramic filament LEDs embedded in it. When warm yellow light shines through, it resembles frozen winter sunshine while exuding a cyberpunk romantic atmosphere. No complicated operations are required—touch the lamp body to smoothly adjust brightness. The light is flicker-free, soft and eye-friendly.
Robots

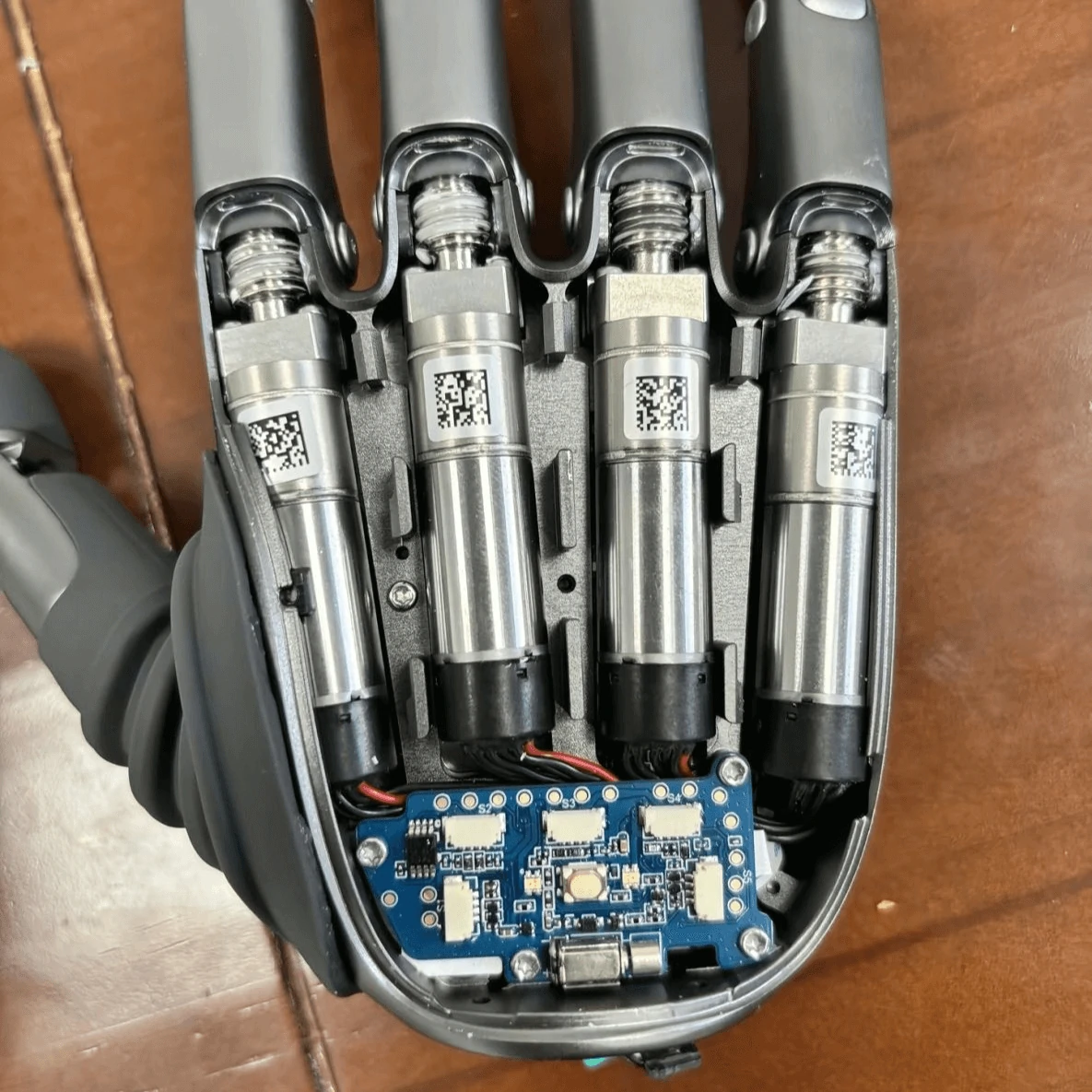

Humanoid Five-Fingered Dexterous Hand
Each finger is equipped with a micro servo electric cylinder, which integrates a coreless motor, planetary roller screw, encoder and force sensor inside, enabling millimeter-level precise control. This design is one of the most cutting-edge technical solutions in the industry. The blue circuit board inside the palm is an integrated drive and control module, responsible for receiving commands, processing sensor data, and driving the electric cylinders to complete movements, ensuring the system's response speed and integration level.
Learn the Steps to Build a Mature Product Concept
We will accurately identify areas requiring optimization and plan the necessary steps to achieve your goals.
Cooperation Partners
Contact Us
As a one-stop PCB partner in China, PCBAPartner always takes quality, reliability, and efficiency as the core to provide global customers with comprehensive and high-quality PCB solutions. If you are looking for a trustworthy PCB manufacturer, please contact us for a quotation or more details.
