PCB Assembly Service
We provide comprehensive PCB assembly services from prototype to mass production. With advanced SMT lines, strict quality control, and experienced engineering support, we serve medical, industrial control, LED driver, and consumer electronics industries worldwide.
Our PCB Assembly Service
SMT Assembly
High-precision SMT assembly supporting 01005 components, BGA/QFN packages, double-sided boards and lead-free soldering. Ideal for high-density and complex PCB designs.
DIP Assembly

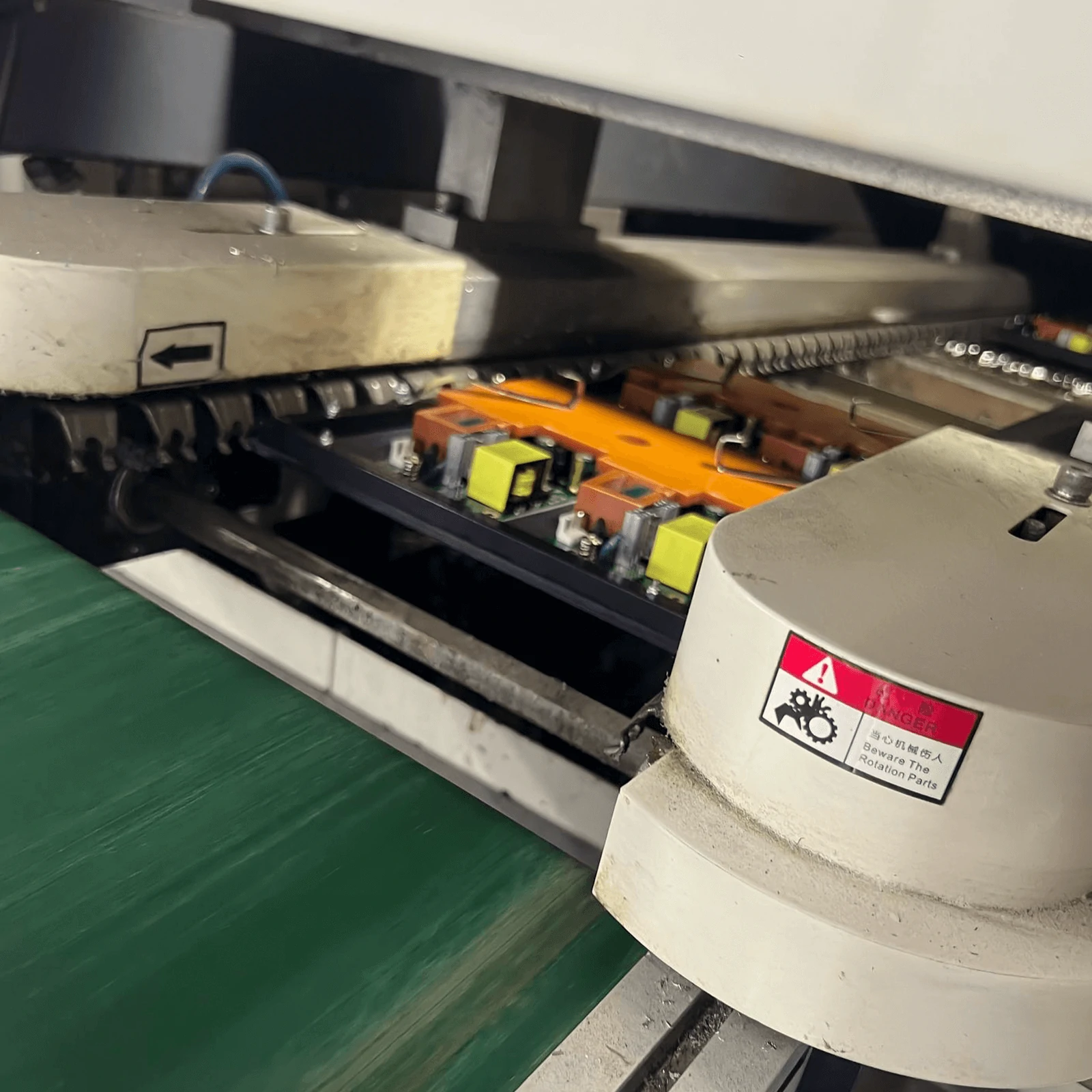

Reliable through-hole and mixed technology assembly including wave soldering and manual insertion, suitable for industrial and power electronics applications.
Prototype & Low Volume
Fast PCB prototype and low-volume production for R&D projects, medical devices and high-end electronic products with flexible lead time.
Turnkey PCB Assembly
One-stop turnkey PCBA including PCB fabrication, component sourcing, SMT, DIP assembly, testing and global shipping support.
Box Build
Complete box build services covering PCB integration, wiring, enclosure assembly, functional testing and final product packaging.
Why Choose Us
Business Categories
PCBA Rapid Prototyping
Core Parameters
- Layers (2-16 Layers)
- Line Width & Spacing (0.1mm/0.1mm)
- Hole Diameter (0.2mm)
- Lead Time (24-48 Hours)
Application Scenarios
- R&D Verification
- Prototype Testing
- Small-batch Trial Production
Value-added Services
- Free DFM Analysis
- Component Procurement
- Test Report Issuance
Technology-driven · Quality Foundation
Production Equipment

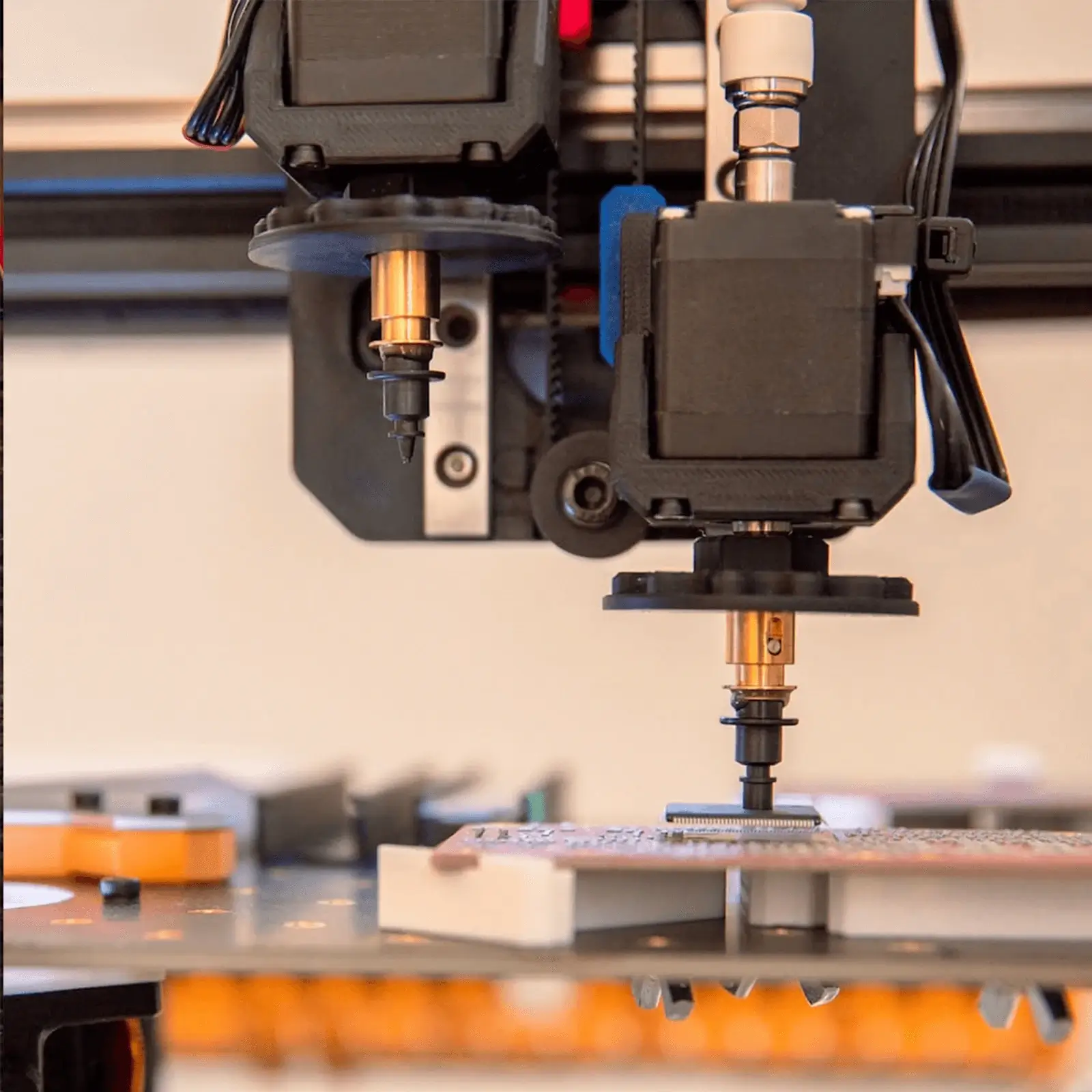

- SIEMENS Chip Mounter

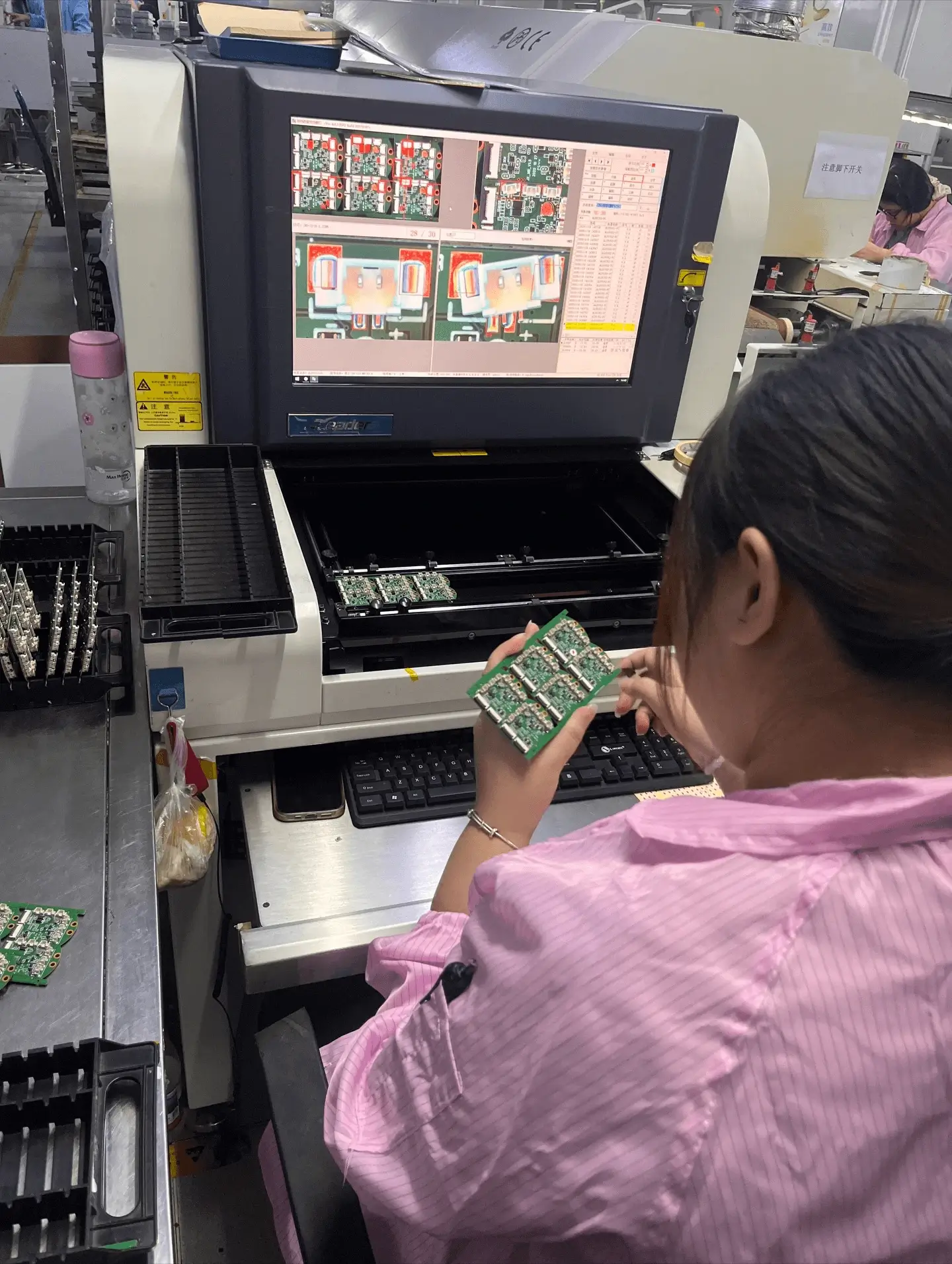

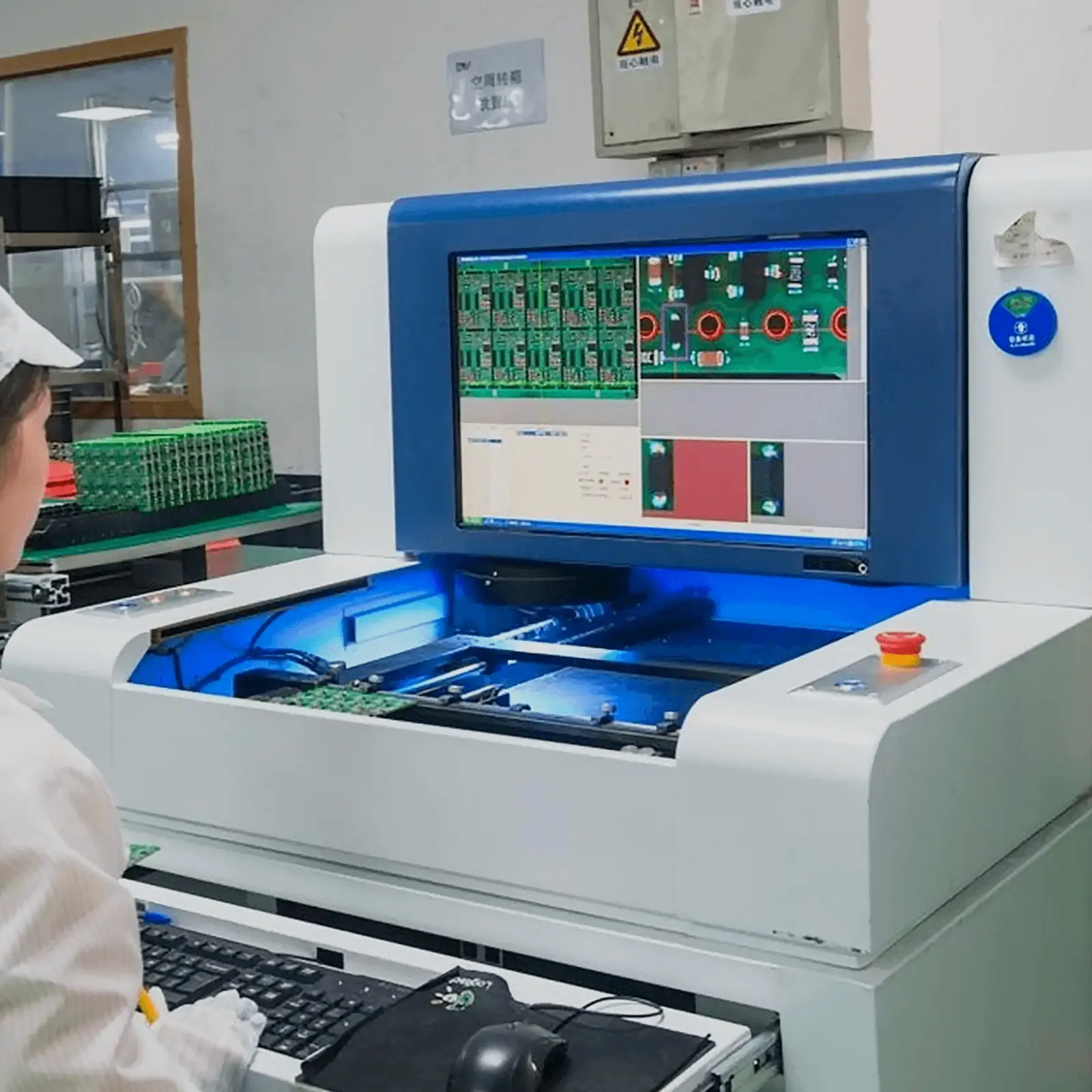

- AOI Automated Optical Inspection Equipment
- X-Ray Inspection Equipment
- ICT Tester
Adopting industry-leading production equipment with precision up to ±0.03mm to ensure soldering quality and production efficiency.

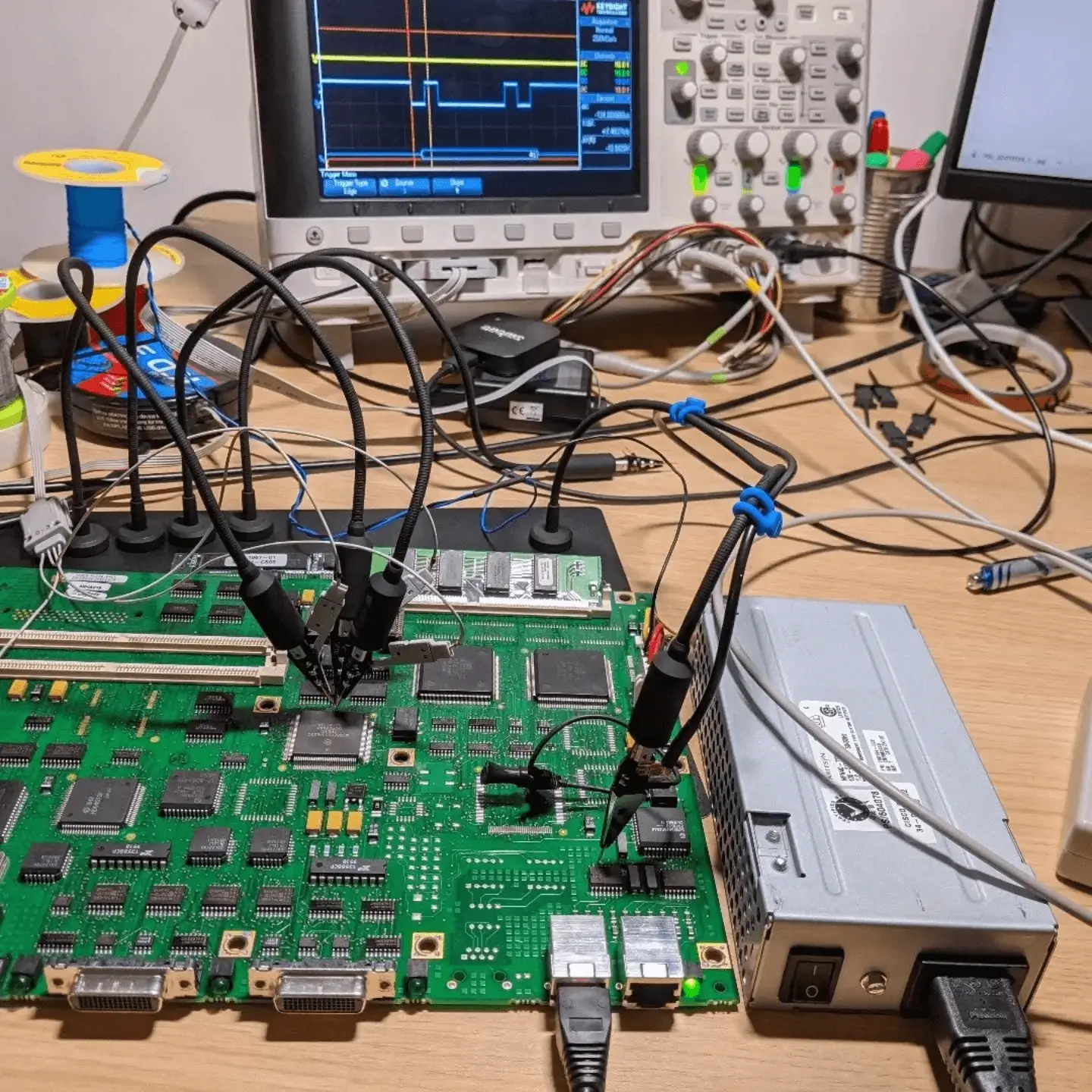

Process Capabilities
- Minimum Line Width 0.08mm
- Minimum Hole Diameter 0.15mm
- Precision Component Soldering (BGA/QFP/CSP)
- Multi-layer Board Lamination Process
- ISO9001 Quality Management System Certified
- ISO13485 (Medical Device Standard) Certified
- Compliant with IPC-A-610 Electronic Assembly Standards

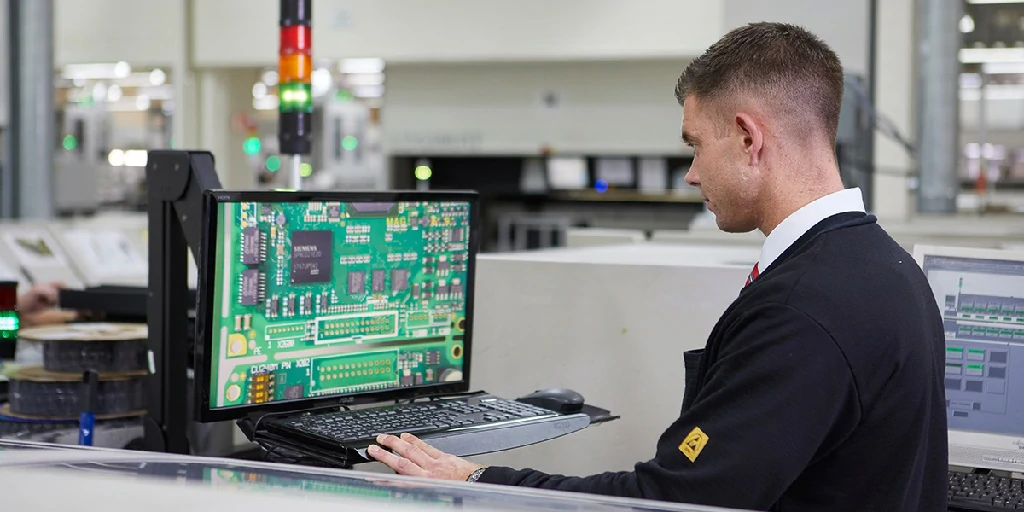

Engineering Team
With an average of over 10 years of experience in the PCBA industry, we excel in complex board design optimization and problem-solving.
- Free DFM Analysis
- Professional Technical Consulting
- Mass Production Risk Assessment
Ready to start your project?
Upload your Gerber files or contact our engineering team for a fast quotation.
Contact Us
As a one-stop PCB partner in China, PCBAPartner always takes quality, reliability, and efficiency as the core to provide global customers with comprehensive and high-quality PCB solutions. If you are looking for a trustworthy PCB manufacturer, please contact us for a quotation or more details.
