Advanced PCB Assembly Manufacturing Capability
Our manufacturing facility is equipped with multiple SMT production lines and complete inspection systems to support prototype, low volume and mass production projects. We focus on stable process control and high reliability manufacturing for medical, industrial and LED power applications.
Our Advanced PCB Assembly Manufacturing Capability

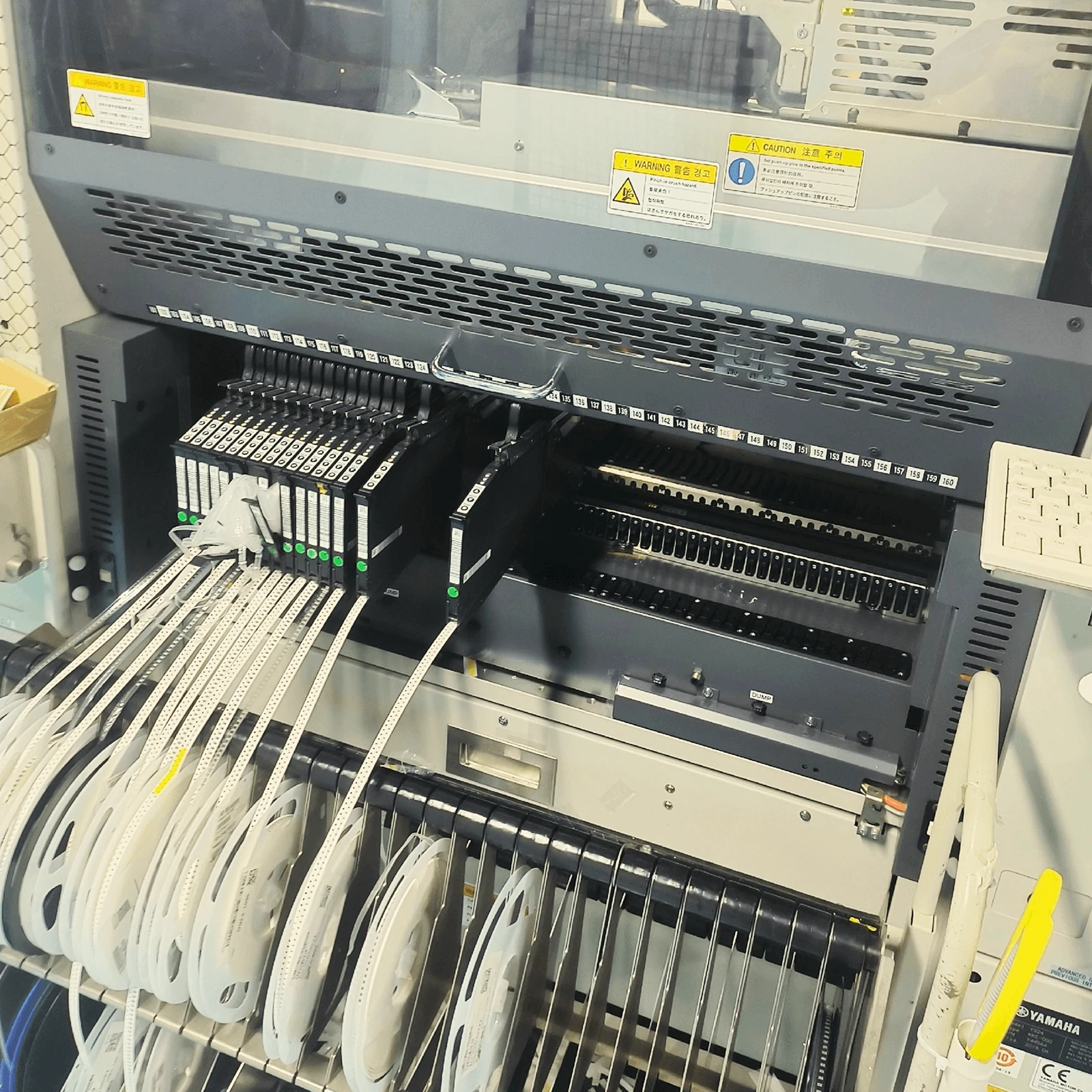

SMT Production Line
Our SMT production lines support high density PCB assembly with QFN and fine-pitch components. We provide double-sided assembly and lead-free manufacturing processes. Automated solder paste printing and controlled reflow temperature profiles ensure stable soldering quality and consistent production performance.

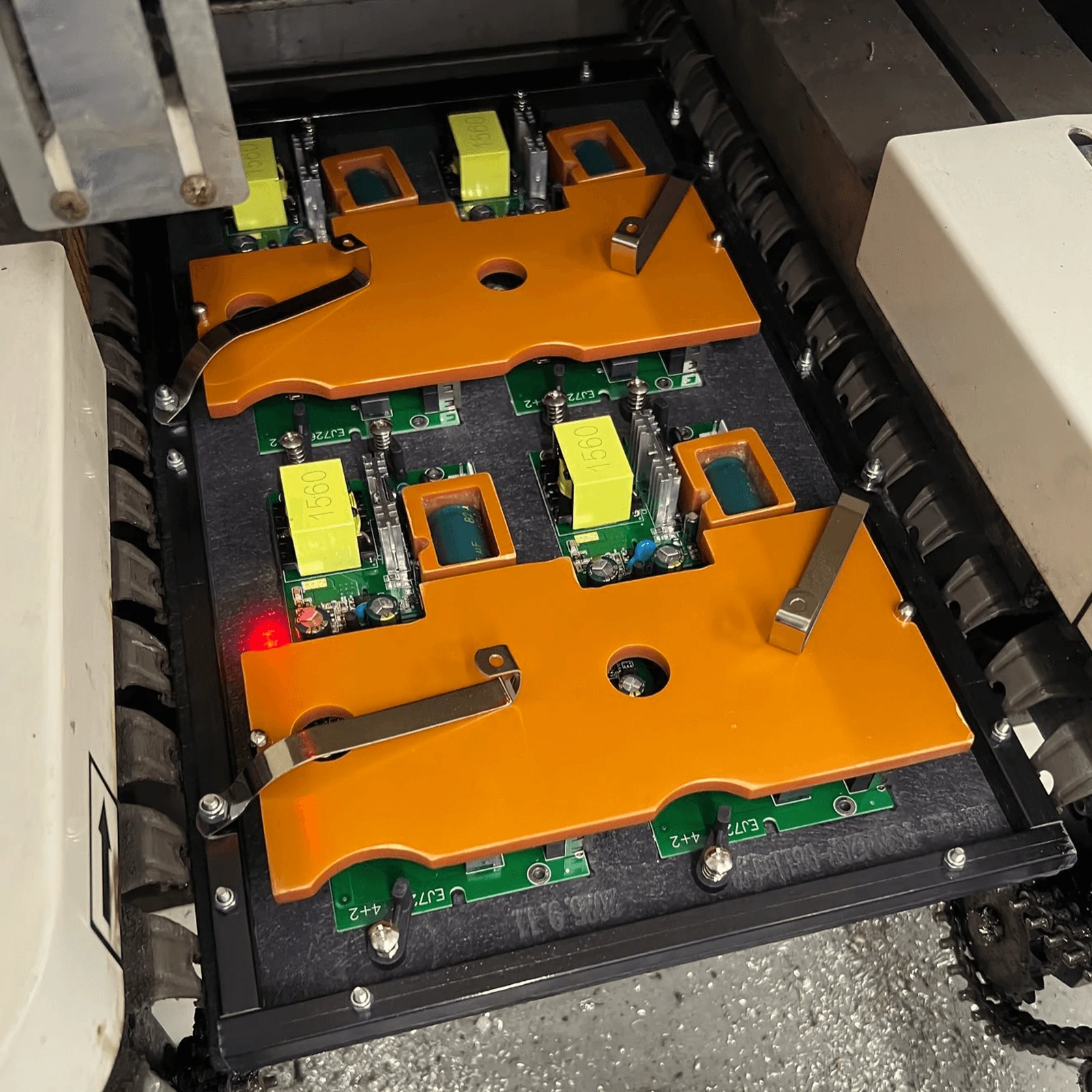

DIP & Assembly Line
We provide through-hole assembly with wave soldering and manual insertion, suitable for power electronics and mixed-technology boards. Dedicated assembly stations ensure stable workmanship and efficient production flow.
Quality Control System
Quality is controlled at every stage of production. Incoming materials are inspected before production. In-process inspection and final quality checks ensure full compliance with IPC standards and customer requirements.

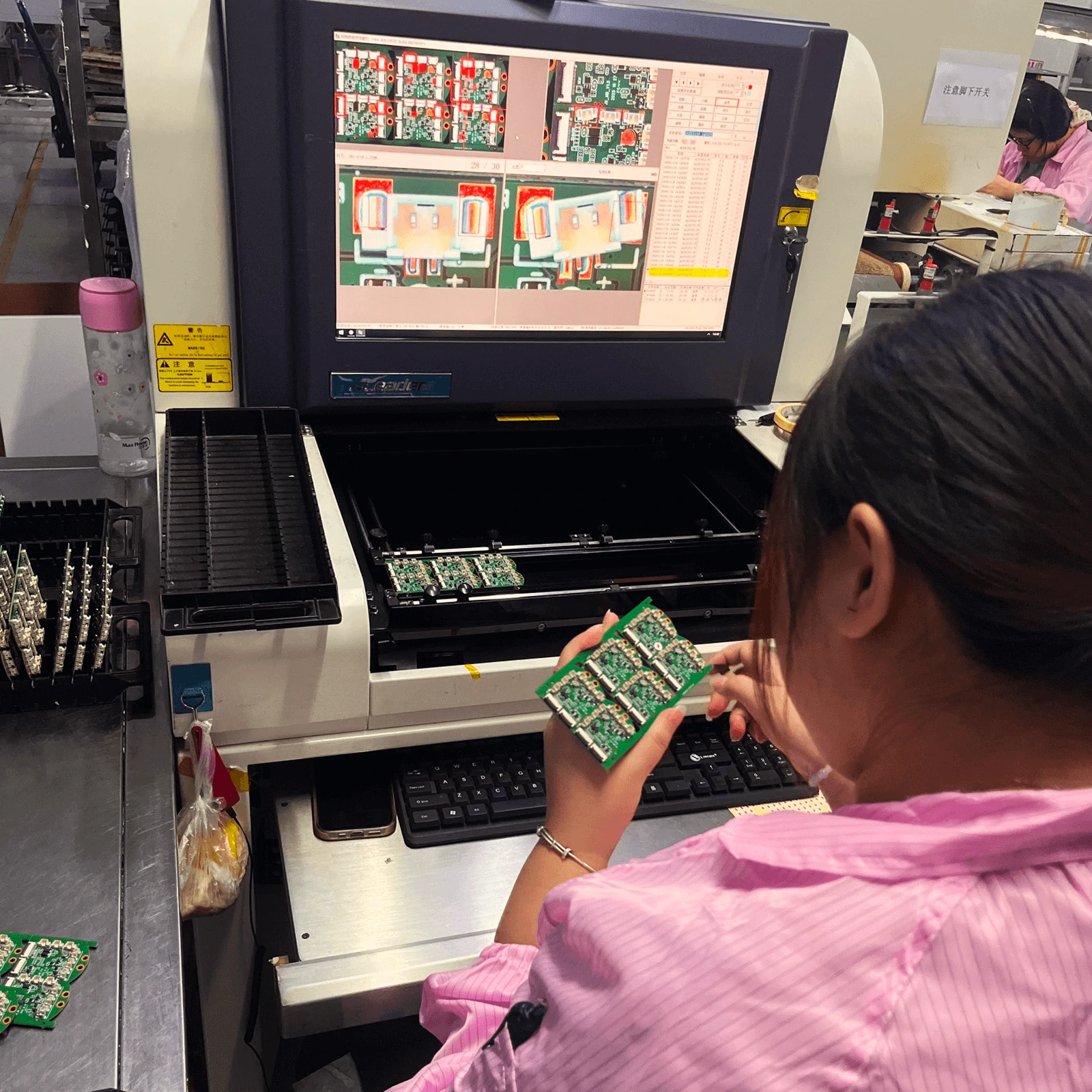

Testing & Inspection
Our inspection capability includes: • AOI (Automated Optical Inspection) • X-ray inspection for BGA components • ICT and functional testing • Aging test for power and LED driver boards • 100% inspection • IPC standard • Traceability
Production Capacity
• Monthly SMT capacity: XXX million components • PCB size range: XXX mm –XXX mm • Prototype lead time: X–X days • Mass production lead time: X–X weeks
Standard Manufacturing Workflow
• Incoming Material Inspection • Solder Paste Printing • SPI • Pick & Place • Reflow Soldering • AOI • DIP Assembly • Functional Testing • Final Inspection • Packaging
Looking for a reliable PCB assembly manufacturing partner?
Contact our engineering team to discuss your project requirements.
